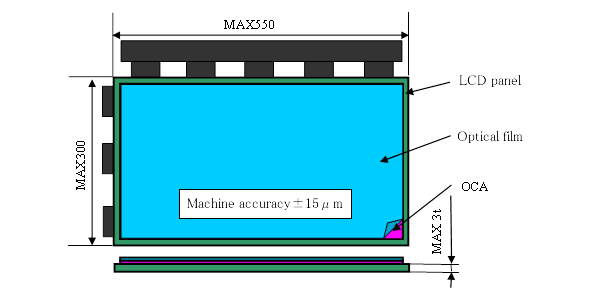

Laminating a sheet cut optical film to a small or medium size of LCD panel. A high accuracy lamination ±15μm is possible by achieving high accuracy alignment of LCD pixel and optical film with CCD camera.

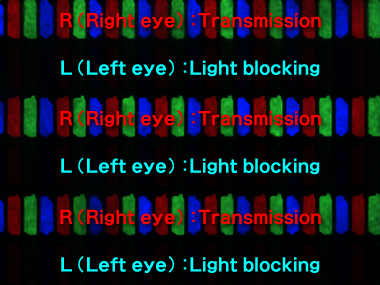

Magnified picture of a laminate of FPR (Film Patterned Retarder) and LCD panel.

High accuracy cut film to LCD panel lamination

Item	Cut Film to LCD Panel (High accuracy)
Material to be laminated	Optical film to LCD panel
Max. processing dimension	550×300(23-inch-equivalent panel)
Max. LCD panel thickness	3.0mm
Lamination accuracy	±15μm
Remarks	Laminating an optical film to OCA (Optical Clear Adhesive) is available

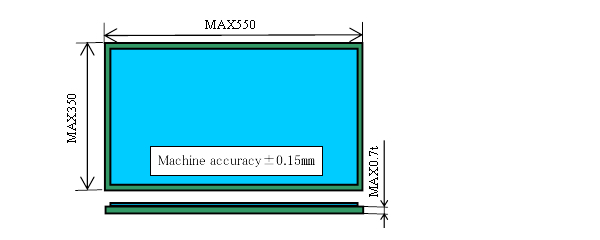

High accuracy roll film to sheet lamination

The optical film can be laminated to a sheet glass or plastic substrate as it is cut from the roll into the sheet length. For small or medium lamination dimension, a high accuracy lamination ±15μm is possible by achieving high accuracy alignment of the glass and optical film with CCD camera.

High accuracy roll film to sheet lamination

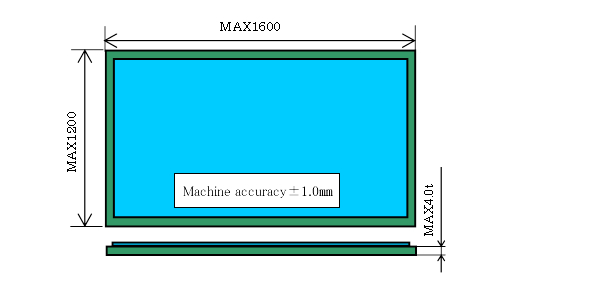

Large dimension roll film to sheet lamination

Item	Roll film to Sheet (High accuracy)	Roll film to Sheet (Large dimension)
Material to be laminated	Optical film to glass or plastic substrate	Optical film to glass or plastic substrate
Max. processing dimension	550×350 (23-inch-equivalent panel)	1600×1200 (60-inch-equivalent panel)
Max. LCD panel thickness	0.7mm	4.0mm
Lamination accuracy	±0.15mm	±1.0mm
Remarks	Application of separator film is required on optical film.	Application of separator film is required on optical film.

Cut film to Glass lamination

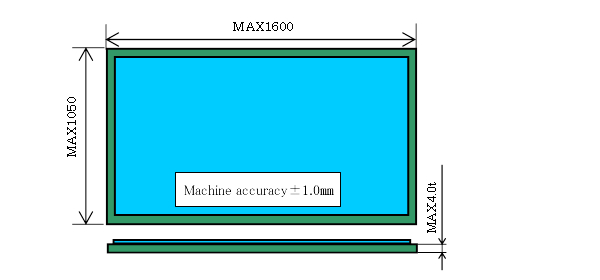

Laminating a sheet cut optical film to a glass. The maximum lamination dimension is 60inch.

Large dimension cut film to glass lamination

Item	Cut film to Glass(Large dimension)
Material to be laminated	Optical film to glass
Max. processing dimension	1600×1050 (60-inch-equivalent panel)
Max. glass thickness	4.0mm
Lamination accuracy	±1.0mm
Remarks	Film cutting is available
