Optical devise for 3D display.

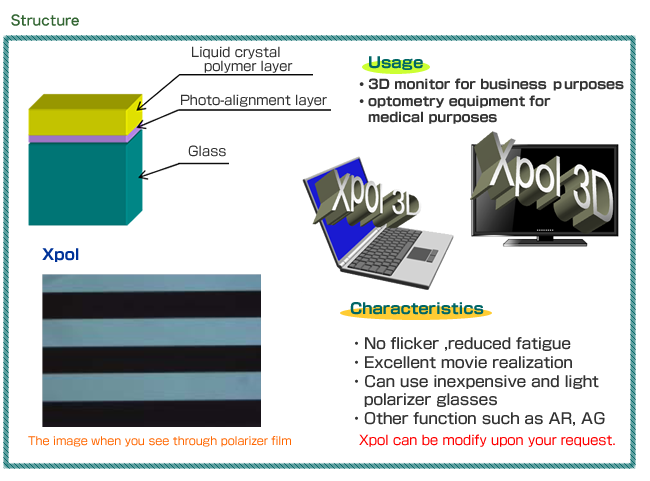

By laminating the Xpol to a flat-panel display, such an LCD monitor,notebook computer,
the user can view flicker-free 3D stereoscopic contents with polarizer glasses.
· Optical axis can be designed as you choose
· The thickness of retardation film is a few µm
· The minimum resolution is 100µm

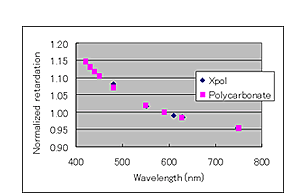

· Wavelength dispersion is the same as polycarbonate
· Thickness dispersion of the retardation film is within±10%
· Dispersion of the optical axis is within±3%
