ANALYSIS SERVICE

Analysis Service Menu(Case Example)
ISO/IEC 17025 Accredited Laboratories
Analytical Equipments

公益財団法人 日本適合性認定協会

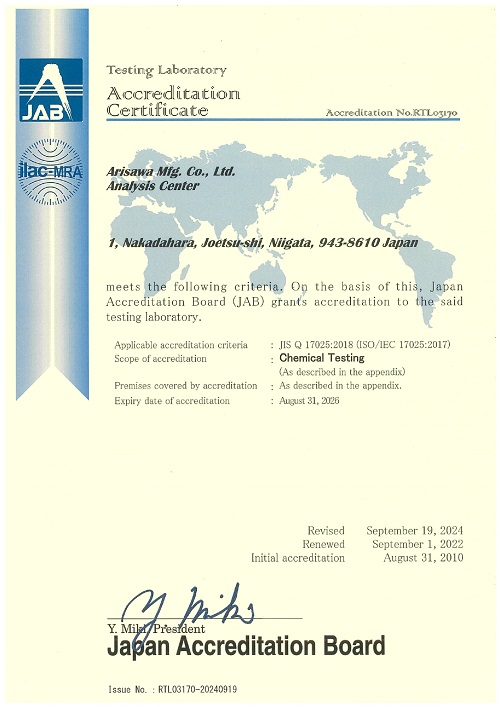

ISO/IEC 17025 Accredited Laboratories

Arisawa is accredited and certified by ISO/IEC 17025 as a competence of testing and calibration laboratory for providing highly reliable data approved internationally. The analysis report can be furnished with ISO/IEC 17025 certified symbol.

認定証   附属書1   附属書2 認定マーク

ISO/IEC 17025 testing laboratory

Accreditation body Japan Accreditation Board
Accreditation No. RTL03170
Date of Initial Accreditation August 31, 2010
Renewal Date September 1, 2022
Expiry Date August 31, 2026
Name of Laboratory Arisawa Manufacturing Co., Ltd.
Analysis Center
Address 1, Nakadahara, Joetsu-shi, Niigata, 943-8610 Japan

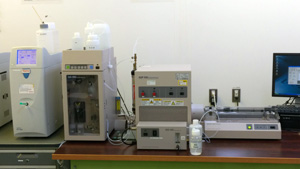

Halogen analysis system
(ion chromatography using the quartz tube combustion method)

Arisawa conduct a test using ion chromatography with quartz tube combustion method. With a specimen which is prepared in a furnace to heat it up to 1100℃ by stages, we are capable to offer the results with high accuracy and reproducibility on the high incombustible specimen and plastic materials.

Measurement principle:
(1)Combusting a specimen by the quartz tube combustion method and absorb the combusted gas by a solvent.
(2)Quantitative measurement of halogen ion absorbed in the solvent by ion chromatography.
Analytical element : Chlorine(Cl), Bromine(Br), Fluorine(F)
Measuring range : From 20 to 5000mg/kg
Test objects : Resin, Rubber, Electronics parts *Please contact us for more detail.
Minimum required specimen amount : 5g or more
Timing : 1 week turnaround time on average (Please ask us if you have an urgent requirement.)


The test report furnished with the certification symbol is
available to issue.
Please ask us if you need.

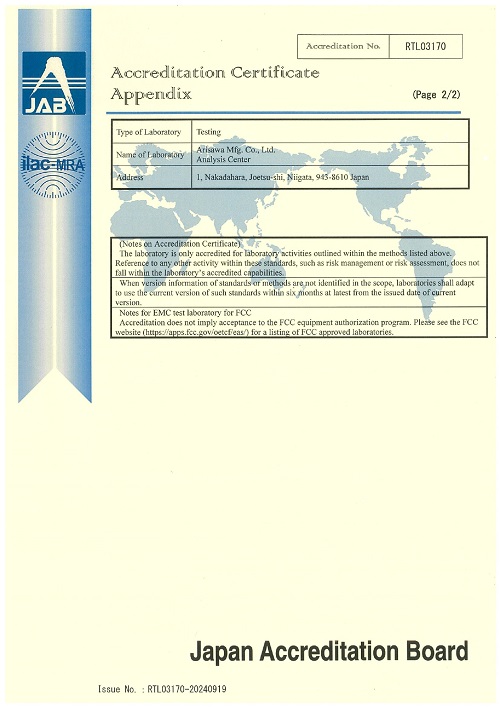

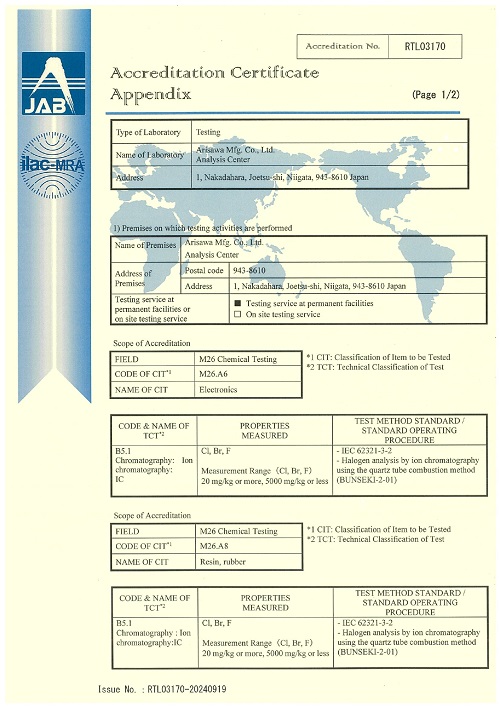

Scope of Accreditation
CODE & NAME OF CIT*1
CODE & NAME OF TCT*2
PROPERTIES MEASURED TEST METHOD STANDARD /
STANDARD OPERATING PROCEDURE
M26.A8/Resin, rubber
B5.1/Chromatography: Ion chromatography:IC
Cl,Br,F

Measurement Range(Cl, Br, F)
20 mg/kg or more, 5000 mg/kg or less
- IEC 62321-3-2
- Halogen analysis by ion
chromatography using the quartz
tube combustion method
(BUNSEKI-2-01)
M26.A6/Electronics
B5.1/Chromatography: Ion chromatography:IC
Cl,Br,F

Measurement Range(Cl, Br, F)
20 mg/kg or more, 5000 mg/kg or less
- IEC 62321-3-2
- Halogen analysis by ion
chromatography using the quartz
tube combustion method
(BUNSEKI-2-01)

*1 CIT: Classification of Item to be Tested
*2 TCT: Technical Classification of Test

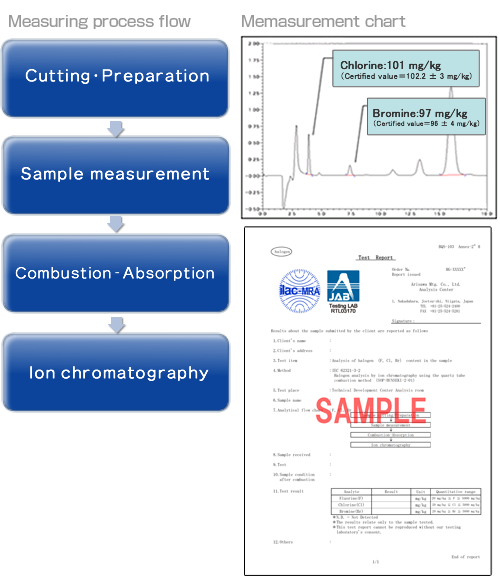

測定フロー・測定チャート
