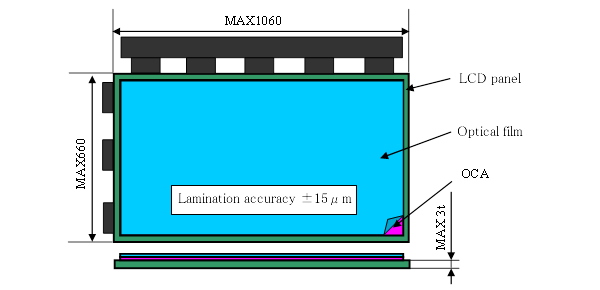

Laminating an optical glass to a large dimension of LCD panel. A high accuracy lamination ±15μm is possible by achieving high accuracy alignment of LCD pixel and optical glass with CCD camera. OCA (Optical Clear Adhesive) is used as an adhesive material.

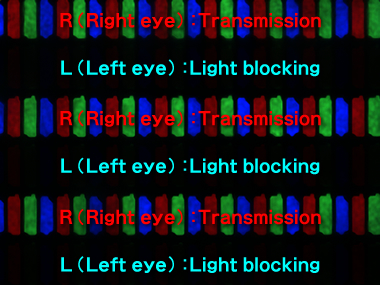

Magnified picture of a laminate of GPR (Glass Patterned Retarder) and LCD panel.
Item
Glass to LCD Panel(High accuracy)
Material to be laminated
Optical glass to LCD panel
Max. processing dimension
1060×660 (47-inch-equivalent panel)
Max. LCD panel thickness
3.0mm
Lamination accuracy
±15μm
Adhesive
OCA(Optical Clear Adhesive)
Remarks
A broad line-up of OCA thickness
High accuracy glass to LCD module lamination

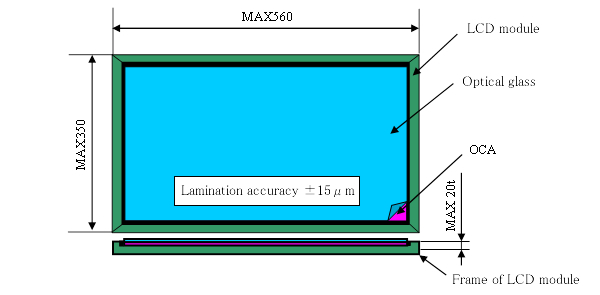

Laminating an optical glass to a small or medium dimension LCD module. A high accuracy lamination ±15μm is possible by achieving high accuracy alignment of LCD pixel and optical glass with CCD camera. Embedding optical glass substrate in the frame of LCD module is available.
Magnified picture of a laminate of GPR (Glass Patterned Retarder) and LCD panel.
Item
Glass to LCD Module(High accuracy)
Material to be laminated
Optical glass to LCD module
Max. processing dimension
560×350 (26-inch-equivalent panel)
Max. LCD module thickness
20mm
Lamination accuracy
±15μm
Adhesive
OCA(Optical Clear Adhesive)
Remarks
Embedding optical glass substrate in the frame of
LCD module is available.
A broad line-up of OCA thickness
